02S.Yvette 發展不如預期 逐漸消散

簽到天數: 4413 天

[LV.Master]伴壇終老

2016-12-19 07:09 | 顯示全部樓層
本帖最後由 s6815711 於 2016-12-25 18:06 編輯

  一級熱帶氣旋
編號:07 U ( 02 S )
名稱:Yvette

  基本資料
擾動編號日期 :2016 12 19 06
JTWC升格日期: 2016 12 20 02
命名日期   :2016 12 21 14
撤編日期   :2016 12 25 16
登陸地點   :暫無

  巔峰時期資料
近中心最強風速 /海平面最低氣壓
澳洲氣象局 (BoM) :  40 kt
聯合颱風警報中心(JTWC): 45 kt ( TS )
海平面最低氣壓    :987 百帕

  過去路徑圖

  討論帖圖片

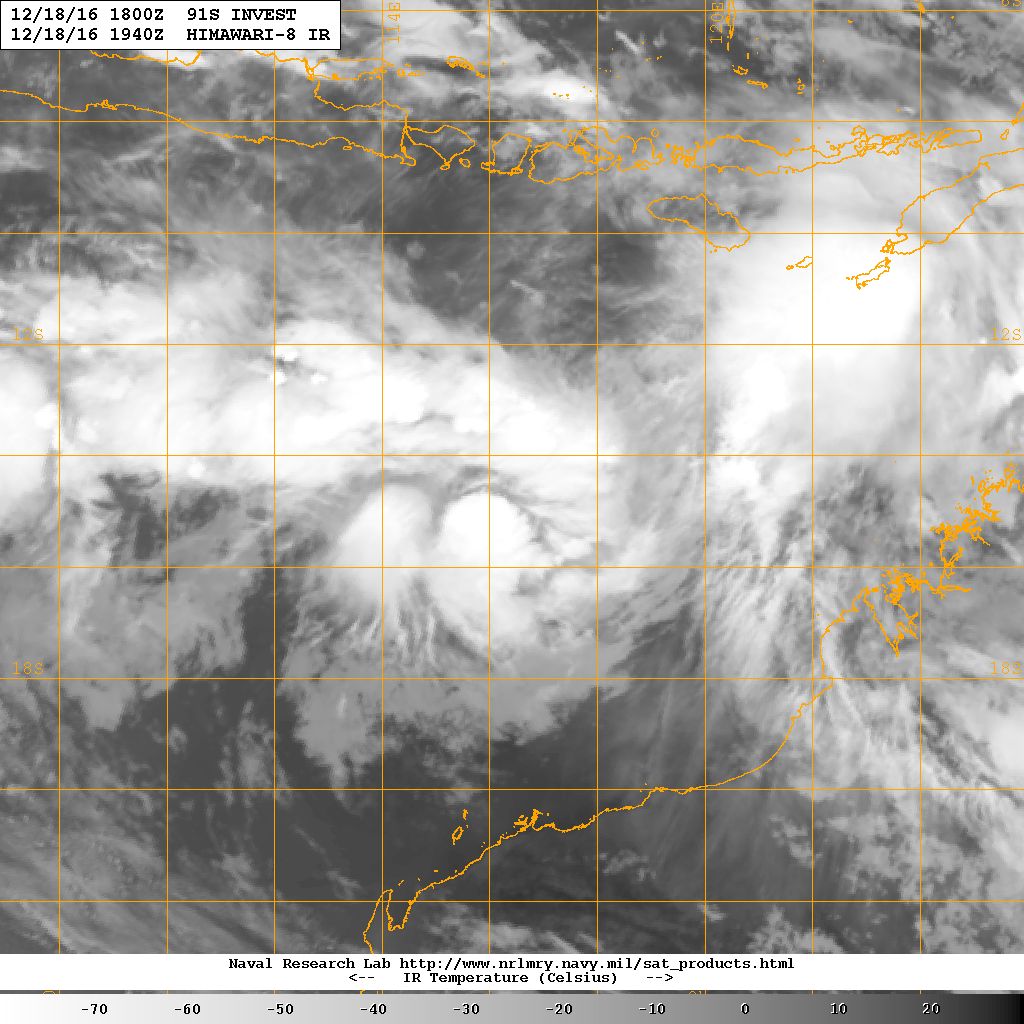

91S.INVEST.15kts.1010mb.15S.116.4E

以上資料來自:BoM、JTWC、颱風論壇整理製作

評分

參與人數 1水氣能量 +15 收起 理由
jwpk9899 + 15 熱帶擾動首帖

查看全部評分

回復

使用道具 舉報

簽到天數: 474 天

[LV.9]以壇為家II

劉瑞益@FB|2016-12-19 14:45 | 顯示全部樓層
提示: 作者被禁止或刪除 內容自動屏蔽
回復

使用道具 舉報

簽到天數: 588 天

[LV.9]以壇為家II

Meow|2016-12-19 16:11 | 顯示全部樓層
已編號07U,東南側具備35kt持續風力。


IDW27600
TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION
Issued by PERTH TROPICAL CYCLONE WARNING CENTRE
at: 0739 UTC 19/12/2016
Name: Tropical Low
Identifier: 07U
Data At: 0600 UTC
Latitude: 16.0S
Longitude: 114.9E
Location Accuracy: within 30 nm [55 km]
Movement Towards: south southwest [208 deg]
Speed of Movement: 6 knots [12 km/h]
Maximum 10-Minute Wind: 35 knots [65 km/h]
Maximum 3-Second Wind Gust: 50 knots [95 km/h]
Central Pressure: 995 hPa
Radius of 34-knot winds NE quadrant:
Radius of 34-knot winds SE quadrant: 60 nm [110 km]
Radius of 34-knot winds SW quadrant:
Radius of 34-knot winds NW quadrant:
Radius of 48-knot winds NE quadrant:
Radius of 48-knot winds SE quadrant:
Radius of 48-knot winds SW quadrant:
Radius of 48-knot winds NW quadrant:
Radius of 64-knot winds:
Radius of Maximum Winds:
Dvorak Intensity Code: T2.0/2.0/D0.5/06HRS STT:D0.5/06HRS
Pressure of outermost isobar: 1002 hPa
Radius of outermost closed isobar: 90 nm [165 km]
FORECAST DATA
Date/Time    : Location    : Loc. Accuracy: Max Wind   : Central Pressure
[UTC]        : degrees     :      nm  [km]: knots[km/h]: hPa
+06:  19/1200: 16.5S 114.7E:     040 [080]:  035  [065]:  994
+12:  19/1800: 16.6S 114.4E:     055 [100]:  035  [065]:  993
+18:  20/0000: 16.6S 114.1E:     065 [125]:  040  [075]:  991
+24:  20/0600: 16.4S 113.9E:     080 [145]:  040  [075]:  991
+36:  20/1800: 15.8S 113.8E:     100 [180]:  040  [075]:  991
+48:  21/0600: 15.4S 114.2E:     120 [220]:  040  [075]:  990
+60:  21/1800: 15.2S 114.5E:     140 [255]:  045  [085]:  987
+72:  22/0600: 14.9S 114.9E:     155 [290]:  045  [085]:  988
+96:  23/0600: 15.8S 116.5E:     200 [370]:  045  [085]:  988
+120: 24/0600: 18.1S 119.5E:     290 [535]:  040  [075]:  992
REMARKS:
Tropical Low 07U has developed to the north of WA.

Dvorak initial classification of 1.5 at 181800 UTC. In the last 3 hrs curved
band wraps of between 0.5 and 0.6 have been obtained and would yield DTs of 2.5
to 3.0. Latest imagery showed a slight weakening in the curved band. DT
constrained to 2.0. FT/CI set to 2.0. Intensity set to 35 knots with gales in
the SE quadrant.

ASCAT at 0120 UTC showed 35 knot winds in the southeast quadrant.

CIMSS at 0300 UTC showed the system in a shear ridge with shear estimated
between 10 and 20 knots.

SSTs in the area are between 29 and 30C.

07U has developed from a surge in the monsoon NW flow. The low may develop into
a tropical cyclone on Tuesday and is expected to be slow moving for the next 2
to 3 days. There is considerable model divergence on the intensity of the
system, particularly in the longer term.

Copyright Commonwealth of Australia
==
The next bulletin for this system will be issued by: 19/1330 UTC by Perth TCWC.
回復

使用道具 舉報

簽到天數: 4413 天

[LV.Master]伴壇終老

s6815711|2016-12-19 18:31 | 顯示全部樓層
本帖最後由 s6815711 於 2016-12-19 18:33 編輯

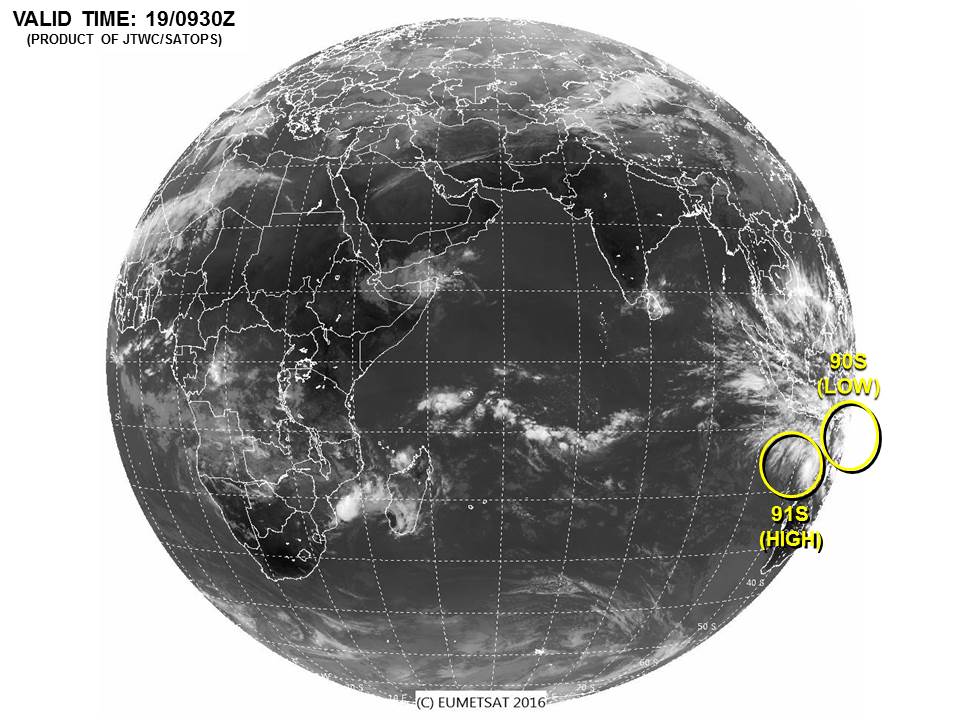

JTWC 09Z評級提升至High
WTXS21 PGTW 190900
MSGID/GENADMIN/JOINT TYPHOON WRNCEN PEARL HARBOR HI//
SUBJ/TROPICAL CYCLONE FORMATION ALERT//
RMKS/
1. FORMATION OF A SIGNIFICANT TROPICAL CYCLONE IS POSSIBLE WITHIN
A 180 NM RADIUS OF 16.0S 115.2E WITHIN THE NEXT 06 TO 24 HOURS.
AVAILABLE DATA DOES NOT JUSTIFY ISSUANCE OF NUMBERED TROPICAL
CYCLONE WARNINGS AT THIS TIME. WINDS IN THE AREA ARE ESTIMATED TO
BE 25 TO 30 KNOTS. METSAT IMAGERY AT 190830Z INDICATES THAT A
CIRCULATION CENTER IS LOCATED NEAR 16.0S 115.2E. THE SYSTEM IS
MOVING SOUTHWESTWARD AT 04 KNOTS.
2. REMARKS: THE AREA OF CONVECTION (INVEST 91S) PREVIOUSLY LOCATED
NEAR 15.7S 115.4E IS NOW LOCATED NEAR 16.0S 115.2E, APPROXIMATELY
326 NM NORTHWEST OF PORT HEDLAND, AUSTRALIA. ANIMATED MULTISPECTRAL
SATELLITE IMAGERY SHOWS A RAPIDLY CONSOLIDATING LOW LEVEL
CIRCULATION CENTER (LLCC) WITH FORMATIVE BANDING WRAPPING INTO THE
LLCC. A 190657Z SSMI 85 GHZ COLOR COMPOSITE IMAGE DEPICTS MULTIPLE
CONVECTIVE BANDS WRAPPING TIGHTLY INTO A SLIGHTLY ELONGATED BUT
DEFINED CENTER. A 190118Z ASCAT PASS DISPLAYED A BAND OF 25-30 KNOT
WINDS ALONG THE NORTHERN PERIPHERY WRAPPING INTO THE SOUTHEAST
QUADRANT. ANIMATED WATER VAPOR SATELLITE IMAGERY REVEALS A ROBUST
EQUATORWARD OUTFLOW CHANNEL AND AN IMPROVING POLEWARD CHANNEL INTO
THE WESTERLY FLOW TO THE SOUTH. OVERALL, ENVIRONMENTAL CONDITIONS
ARE CONDUCIVE FOR FURTHER DEVELOPMENT WITH LOW TO MODERATE (15-20
KNOT) VERTICAL WIND SHEAR VALUES AND SST 29-30C. GLOBAL MODEL
GUIDANCE SHOWS A QUASI-STATIONARY TRACK OVER THE NEXT 2-3 DAYS WITH
CONTINUED DEVELOPMENT. MAXIMUM SUSTAINED SURFACE WINDS ARE ESTIMATED
AT 25 TO 30 KNOTS. MINIMUM SEA LEVEL PRESSURE IS ESTIMATED TO BE
NEAR 998 MB. THE POTENTIAL FOR THE DEVELOPMENT OF A SIGNIFICANT
TROPICAL CYCLONE WITHIN THE NEXT 24 HOURS IS HIGH.
3. THIS ALERT WILL BE REISSUED, UPGRADED TO WARNING OR CANCELLED BY
200900Z.//
NNNN


回復

使用道具 舉報

簽到天數: 2088 天

[LV.Master]伴壇終老

周子堯@FB|2016-12-20 06:17 | 顯示全部樓層

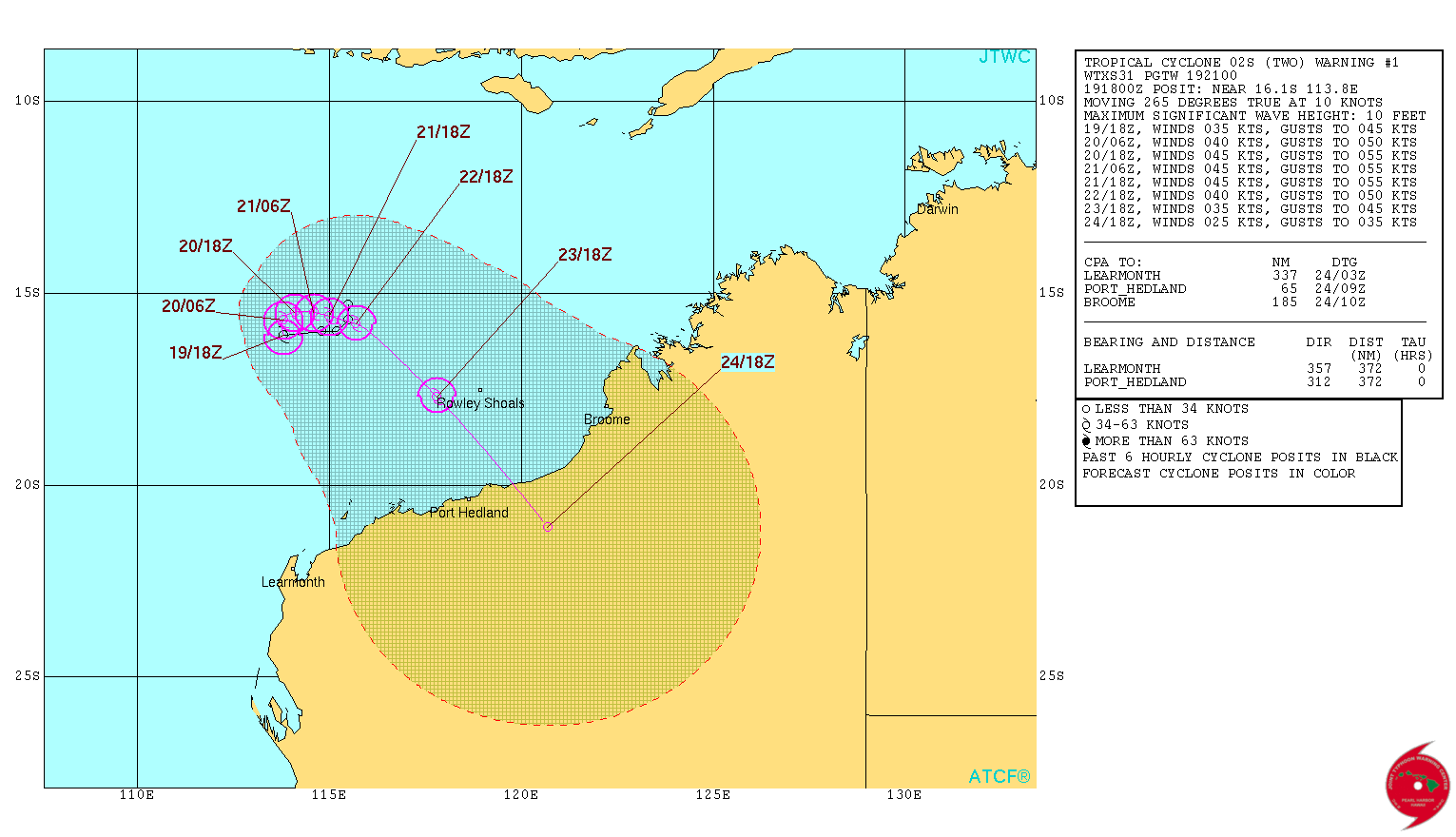

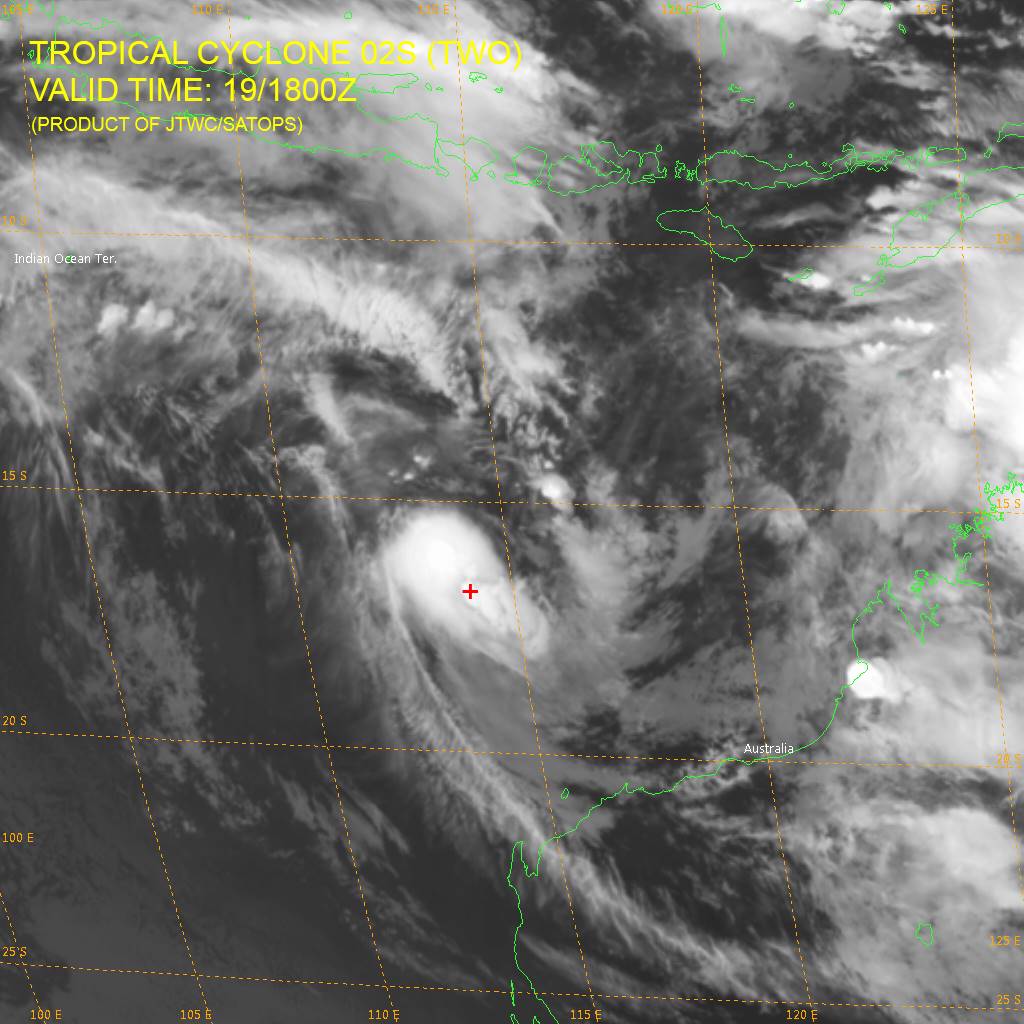

JTWC2100Z升格為熱帶氣旋(02S)



回復

使用道具 舉報

簽到天數: 4413 天

[LV.Master]伴壇終老

s6815711|2016-12-20 12:46 | 顯示全部樓層
本帖最後由 s6815711 於 2016-12-22 15:35 編輯

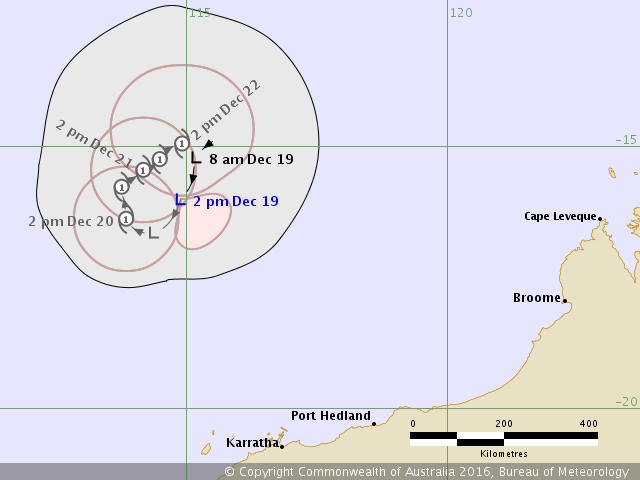

大方向還是以登陸西澳為主
未來強度不是很被看好

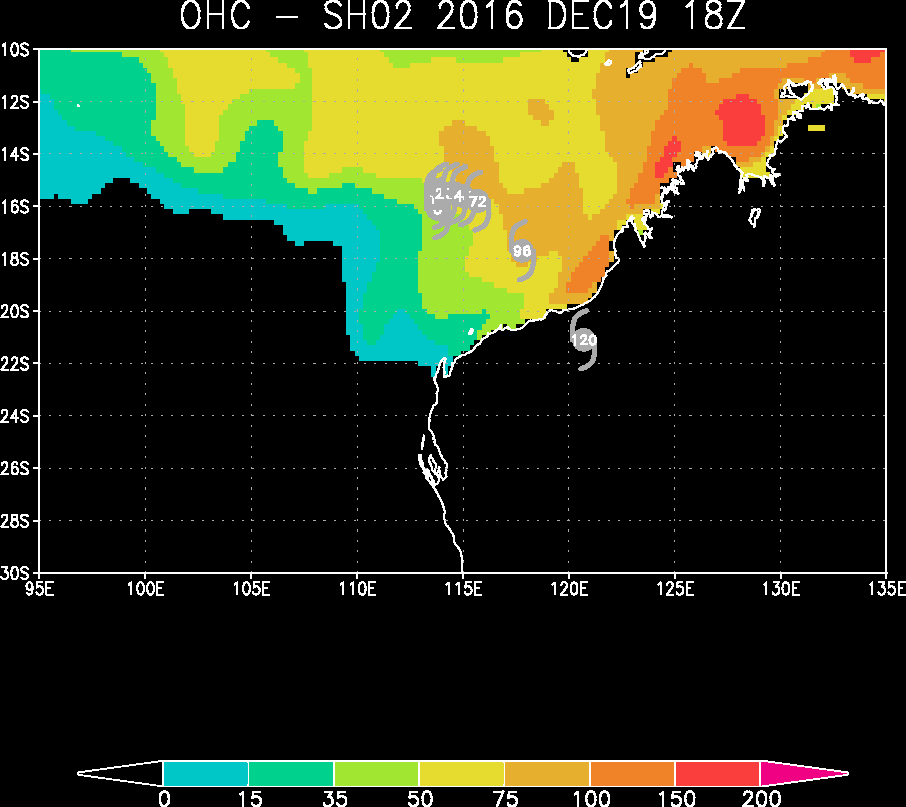

還有4天可以待在OHC還夠用的海面上

回復

使用道具 舉報

簽到天數: 4413 天

[LV.Master]伴壇終老

s6815711|2016-12-21 17:00 | 顯示全部樓層
BoM正式命名為Yvette

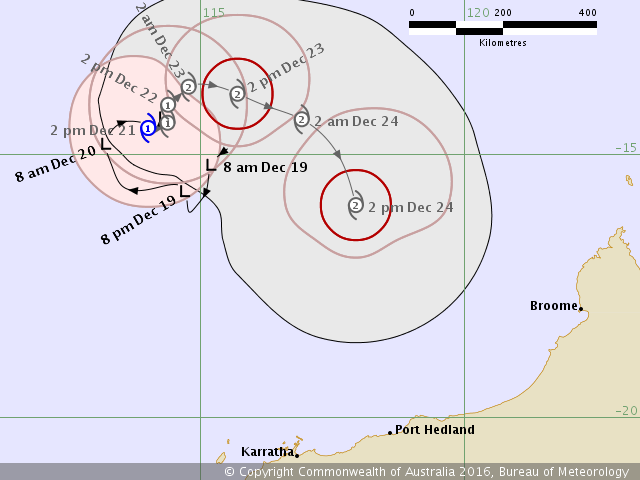

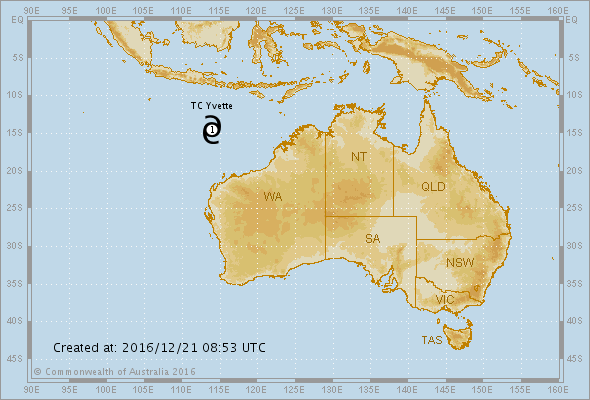

IDA00041.png IDW60280.png

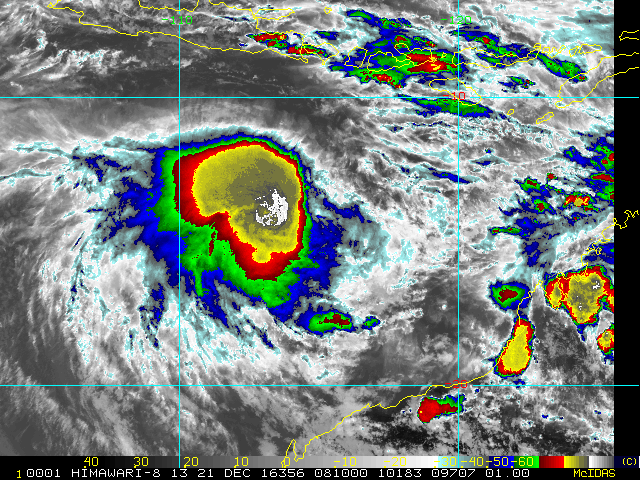

對流爆發的有點猛
回復

使用道具 舉報

簽到天數: 588 天

[LV.9]以壇為家II

Meow|2016-12-21 17:00 | 顯示全部樓層
已命名Yvette。


IDW27600
TROPICAL CYCLONE TECHNICAL BULLETIN: AUSTRALIA - WESTERN REGION
Issued by PERTH TROPICAL CYCLONE WARNING CENTRE
at: 0657 UTC 21/12/2016
Name: Tropical Cyclone Yvette
Identifier: 07U
Data At: 0600 UTC
Latitude: 14.5S
Longitude: 114.0E
Location Accuracy: within 30 nm [55 km]
Movement Towards: Slow moving
Speed of Movement: Slow moving
Maximum 10-Minute Wind: 40 knots [75 km/h]
Maximum 3-Second Wind Gust: 55 knots [100 km/h]
Central Pressure: 987 hPa
Radius of 34-knot winds NE quadrant: 60 nm [110 km]
Radius of 34-knot winds SE quadrant: 90 nm [165 km]
Radius of 34-knot winds SW quadrant: 90 nm [165 km]
Radius of 34-knot winds NW quadrant: 90 nm [165 km]
Radius of 48-knot winds NE quadrant:
Radius of 48-knot winds SE quadrant:
Radius of 48-knot winds SW quadrant:
Radius of 48-knot winds NW quadrant:
Radius of 64-knot winds:
Radius of Maximum Winds: 20 nm [35 km]
Dvorak Intensity Code: T3.0/3.0/D0.5/24HRS STT:S0.0/06HRS
Pressure of outermost isobar: 1000 hPa
Radius of outermost closed isobar: 210 nm [390 km]
FORECAST DATA
Date/Time    : Location    : Loc. Accuracy: Max Wind   : Central Pressure
[UTC]        : degrees     :      nm  [km]: knots[km/h]: hPa
+06:  21/1200: 14.5S 114.2E:     040 [080]:  040  [075]:  988
+12:  21/1800: 14.4S 114.4E:     055 [100]:  045  [085]:  985
+18:  22/0000: 14.2S 114.3E:     065 [125]:  045  [085]:  985
+24:  22/0600: 14.1S 114.4E:     080 [145]:  045  [085]:  985
+36:  22/1800: 13.7S 114.8E:     100 [180]:  050  [095]:  982
+48:  23/0600: 13.9S 115.7E:     120 [220]:  050  [095]:  983
+60:  23/1800: 14.3S 116.9E:     140 [255]:  055  [100]:  980
+72:  24/0600: 16.0S 117.9E:     155 [290]:  060  [110]:  977
+96:  25/0600: 18.8S 120.0E:     200 [370]:  060  [110]:  975
+120: 26/0600: 21.6S 122.8E:     290 [535]:  025  [045]:  999
REMARKS:
Tropical Cyclone Yvette has developed to the north of Western Australia.

The system was located using an ASCAT pass at 0133 UTC and the latest visible
imagery.

Deep convection developed overnight and persisted during the morning and early
afternoon to the northwest and southwest of the centre.

Using a shear pattern DTs of 3.0 were obtained with the centre <0.5 from edge.
MET was 3.0 with a recent D trend. PAT was 3.0. FT/CI set to 3.0 with intensity
set to 40 knots.
CIMSS ADT had a CI of 3.5 at 0500 UTC. NESDIS ADT was 3.1 at 0400 UTC.

The ASCAT pass at 0133 UTC showed gales wrapping around the centre in the
southwest and northwest quadrants with no information in the other quadrants.

Recent motion continues to be slow.

Shear analysis at 00 UTC showed strong shear from the ENE [-30 knots], there is
upper level divergence over southern quadrants only and wind fields show little
outflow in northern quadrants. Shear may decrease later on Wednesday or on
Thursday, allowing conditions to become more favourable for development. SSTs
are around 29C with 29C to 31C along the forecast track.

The system is expected to be slow moving before tracking towards the southeast
from Friday and approaching the Pilbara/West Kimberley coast over the Christmas
weekend. There is considerable model variation on the movement and intensity of
the system, particularly in the longer term. The movement of a tropical low over
the Kimberley, then through central parts of WA may influence the development
and track of 07U.

Copyright Commonwealth of Australia
==
The next bulletin for this system will be issued by: 21/1330 UTC by Perth TCWC.

澳洲不用西北澳,因為有個州就叫西澳。
