1119奈格颱風機構發報帖

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 05:30 | 顯示全部樓層

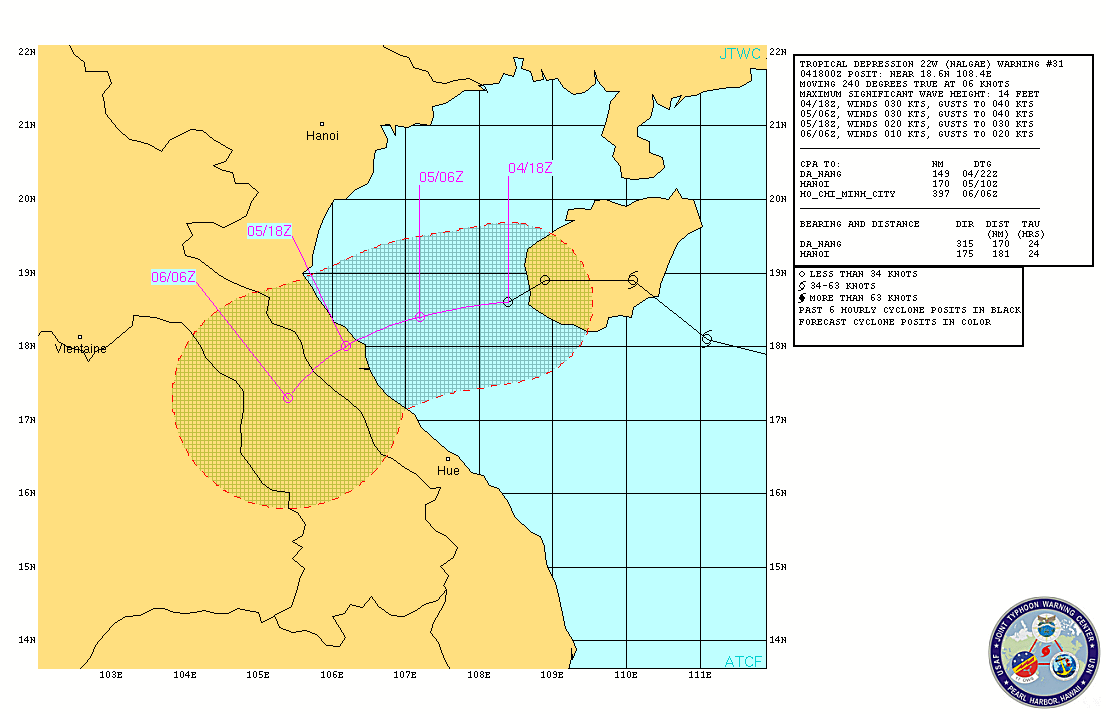

WTPN33 PGTW 042100
MSGID/GENADMIN/NAVMARFCSTCEN PEARL HARBOR HI/JTWC//
SUBJ/TROPICAL CYCLONE WARNING//
RMKS/
1. TROPICAL DEPRESSION 22W (NALGAE) WARNING NR 031
   01 ACTIVE TROPICAL CYCLONE IN NORTHWESTPAC
   MAX SUSTAINED WINDS BASED ON ONE-MINUTE AVERAGE
   WIND RADII VALID OVER OPEN WATER ONLY
    ---
   WARNING POSITION:
   041800Z --- NEAR 18.6N 108.4E
     MOVEMENT PAST SIX HOURS - 240 DEGREES AT 06 KTS
     POSITION ACCURATE TO WITHIN 060 NM
     POSITION BASED ON CENTER LOCATED BY SATELLITE
   PRESENT WIND DISTRIBUTION:
   MAX SUSTAINED WINDS - 030 KT, GUSTS 040 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   REPEAT POSIT: 18.6N 108.4E
    ---
   FORECASTS:
   12 HRS, VALID AT:
   050600Z --- 18.4N 107.2E
   MAX SUSTAINED WINDS - 030 KT, GUSTS 040 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   VECTOR TO 24 HR POSIT: 245 DEG/ 05 KTS
    ---
   24 HRS, VALID AT:
   051800Z --- 18.0N 106.2E
   MAX SUSTAINED WINDS - 030 KT, GUSTS 040 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATING AS A SIGNIFICANT TROPICAL CYCLONE OVER LAND
   VECTOR TO 36 HR POSIT: 230 DEG/ 05 KTS
    ---
   36 HRS, VALID AT:
   060600Z --- 17.3N 105.4E
   MAX SUSTAINED WINDS - 020 KT, GUSTS 030 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE OVER LAND
    ---
REMARKS:
042100Z POSITION NEAR 18.5N 108.1E.
TROPICAL DEPRESSION (TD) 22W (NALGAE), LOCATED APPROXIMATELY 200 NM
SOUTHEAST OF HANOI, VIETNAM, HAS TRACKED SOUTHWESTWARD AT 06 KNOTS
OVER THE PAST SIX HOURS. ANIMATED INFRARED SATELLITE IMAGERY (IR)
SHOWS A FULLY EXPOSED DISORGANIZED LOW LEVEL CIRCULATION CENTER
(LLCC). A 041900Z AMSU 89 GHZ IMAGE SHOWS A SMALL CONVECTIVE CLUSTER
ON THE EXTREME WESTERN PERIPHERY WHICH IS DECOUPLED FROM THE LLCC
DUE TO THE LAND INTERACTION WITH HAINAN. THE INITIAL POSITION IS
BASED ON THE ANIMATED IR AND AMSU IMAGE WITH POOR CONFIDENCE. THE
INITIAL INTENSITY IS BASED ON PREVIOUS OBSERVATIONS OF 30 KNOTS OVER
SOUTHWESTERN HAINAN AND AN RJTD DVORAK INTENSITY ESTIMATE OF 30
KNOTS. TD 22W WILL CONTINUE TO STEER ALONG THE SOUTHWESTERN
PERIMETER OF THE SUBTROPICAL RIDGE. NALGAE WILL MAINTAIN INTENSITY
AT 30 KNOTS AS IT TRACKS OVER THE SOUTHERN GULF OF TONKIN DUE TO
WARM SEA SURFACE TEMPERATURES (29-30 DEGREES CELSIUS) BUT WILL BE
INHIBITED FROM FURTHER INTENSIFICATION BY CONTINUED MODERATE (20
KNOTS) VERTICAL WIND SHEAR. TD 22W WILL MAKE LANDFALL BY TAU 24 AND
DISSIPATE OVER VIETNAM BY TAU 36. THE CONSENSUS OF MODEL GUIDANCE IS
DEGRADED BY THE ECMWF AND GFDN TRACKERS WHICH PICK UP ON LOW LEVEL
VORTICITY OVER THE SOUTH CHINA SEA AND THEREFORE BRING NALGAE ON A
UNLIKELY SOUTHEASTERN TRACK BACK OVER THE OPEN WATERS OF THE SOUTH
CHINA SEA. WBAR CONTINUES TO BE THE RIGHT MOST OUTLIER OF THE AIDS.
THIS FORECAST IS MORE INLINE WITH THE JGSM AND EGRR SOLUTIONS WHICH
HAVE REMAINED RELATIVELY STABLE. MAXIMUM SIGNIFICANT WAVE HEIGHT AT
041800Z IS 14 FEET. NEXT WARNINGS AT 050300Z, 050900Z, 051500Z AND
052100Z.//
NNNN
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 05:34 | 顯示全部樓層
輕度颱風 編號第19號
國際命名  NALGAE  中文譯名  奈格
》颱風現況
2011年10月05日02時
      中心位置 北緯18.4度 東經108.2度
      過去移動方向   西
      過去移動時速   12 公里
      中心氣壓   998 百帕
      近中心最大風速 18 公尺/秒
      瞬間之最大陣風 25 公尺/秒
      七級風半徑180公里
》颱風預測
預測 0-12 小時平均移向移速為
     西 時速 10 公里
     預測 10月05日14時
     中心在 北緯 18.3 度 東經 107.1 度
     70%機率半徑 70 公里
預測 12-24 小時
     熱帶性低氣壓
2011100418_WSP_0_download.png 2011NALGAE-100418_PTA_1_download.png
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 05:37 | 顯示全部樓層
颱風第19號 (ナルガエ)
平成23年10月05日03時40分 発表
<05日03時の実況>
大きさ        -
強さ        -
存在地域        トンキン灣
中心位置        北緯 18度25分(18.4度)
        東経 108度05分(108.1度)
進行方向、速さ        西 10km/h(6kt)
中心気圧        1000hPa
最大風速        18m/s(35kt)
最大瞬間風速        25m/s(50kt)
15m/s以上の強風域        北側 390km(210NM)
        南側 280km(150NM)
<06日03時の予報>
強さ        -
存在地域        トンキン灣
予報円の中心        北緯 18度10分(18.2度)
        東経 106度25分(106.4度)
進行方向、速さ        西 ゆっくり
中心気圧        1002hPa
最大風速        18m/s(35kt)
最大瞬間風速        25m/s(50kt)
予報円の半徑        130km(70NM)
<07日03時の予報>
強さ        -
        熱帯低気圧
存在地域        ラオス
予報円の中心        北緯 17度35分(17.6度)
        東経 105度30分(105.5度)
進行方向、速さ        西南西 ゆっくり
中心気圧        1008hPa
予報円の半徑        300km(160NM)
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 05:48 | 顯示全部樓層
颱風第19號 (ナルガエ)
平成23年10月05日06時40分 発表
<05日06時の実況>
大きさ        -
強さ        -
存在地域        トンキン灣
中心位置        北緯 18度25分(18.4度)
        東経 108度00分(108.0度)
進行方向、速さ        西 ゆっくり
中心気圧        1000hPa
最大風速        18m/s(35kt)
最大瞬間風速        25m/s(50kt)
15m/s以上の強風域        北側 390km(210NM)
        南側 280km(150NM)
<06日06時の予報>
強さ        -
存在地域        トンキン灣
予報円の中心        北緯 18度10分(18.2度)
        東経 106度10分(106.2度)
進行方向、速さ        西 ゆっくり
中心気圧        1002hPa
最大風速        18m/s(35kt)
最大瞬間風速        25m/s(50kt)
予報円の半徑        130km(70NM)
<07日03時の予報>
強さ        -
        熱帯低気圧
存在地域        ラオス
予報円の中心        北緯 17度35分(17.6度)
        東経 105度30分(105.5度)
進行方向、速さ        西南西 ゆっくり
中心気圧        1008hPa
予報円の半徑        300km(160NM)
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 08:45 | 顯示全部樓層
台風第19号 (ナルガエ)
平成23年10月05日09時40分 発表
<05日09時の実況>
大きさ-
強さ-
存在地域トンキン湾
中心位置北緯 18度10分(18.2度)
東経 108度00分(108.0度)
進行方向、速さ西 ゆっくり
中心気圧1000hPa
最大風速18m/s(35kt)
最大瞬間風速25m/s(50kt)
15m/s以上の強風域北側 390km(210NM)
南側 280km(150NM)
<06日09時の予報>
強さ-
熱帯低気圧
存在地域ベトナム
予報円の中心北緯 18度10分(18.2度)
東経 105度40分(105.7度)
進行方向、速さ西 ゆっくり
中心気圧1006hPa
予報円の半径130km(70NM)
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 15:26 | 顯示全部樓層
熱帯低気圧
平成23年10月05日15時50分 発表
<05日15時の実況>
大きさ        -
強さ        -
        熱帯低気圧
存在地域        トンキン灣
中心位置        北緯 18度00分(18.0度)
        東経 108度00分(108.0度)
進行方向、速さ        西 ゆっくり
中心気圧        1004hPa
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 17:39 | 顯示全部樓層
WTPN33 PGTW 050900
MSGID/GENADMIN/NAVMARFCSTCEN PEARL HARBOR HI/JTWC//
SUBJ/TROPICAL CYCLONE WARNING//
RMKS/
1. TROPICAL DEPRESSION 22W (NALGAE) WARNING NR 033
   01 ACTIVE TROPICAL CYCLONE IN NORTHWESTPAC
   MAX SUSTAINED WINDS BASED ON ONE-MINUTE AVERAGE
   WIND RADII VALID OVER OPEN WATER ONLY
    ---
   WARNING POSITION:
   050600Z --- NEAR 18.2N 107.6E
     MOVEMENT PAST SIX HOURS - 235 DEGREES AT 03 KTS
     POSITION ACCURATE TO WITHIN 040 NM
     POSITION BASED ON CENTER LOCATED BY A COMBINATION OF
     SATELLITE AND SYNOPTIC DATA
   PRESENT WIND DISTRIBUTION:
   MAX SUSTAINED WINDS - 025 KT, GUSTS 035 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATING AS A SIGNIFICANT TROPICAL CYCLONE OVER WATER
   REPEAT POSIT: 18.2N 107.6E
    ---
   FORECASTS:
   12 HRS, VALID AT:
   051800Z --- 17.7N 106.8E
   MAX SUSTAINED WINDS - 025 KT, GUSTS 035 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATING AS A SIGNIFICANT TROPICAL CYCLONE OVER WATER
   VECTOR TO 24 HR POSIT: 240 DEG/ 04 KTS
    ---
   24 HRS, VALID AT:
   060600Z --- 17.3N 106.1E
   MAX SUSTAINED WINDS - 015 KT, GUSTS 025 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE OVER LAND
    ---
REMARKS:
050900Z POSITION NEAR 18.1N 107.4E.
TROPICAL DEPRESSION (TD) 22W (NALGAE), LOCATED APPROXIMATELY 105 NM
NORTH OF HUE, VIETNAM, HAS TRACKED WEST-SOUTHWESTWARD AT 03 KNOTS
OVER THE PAST SIX HOURS. ANIMATED MULTISPECTRAL IMAGERY SHOWS TD 22W
WEAKENING OVER WATER, WITH DEEP CONVECTION CONFINED TO THE TO THE
WESTERN SEMICIRCLE. A 050204Z PARTIAL ASCAT PASS SHOWS 20-25KT WINDS
IN THE WESTERN SEMICIRCLE. THE 050000Z PGTW UPPER LEVEL STREAMLINE
ANALYSIS INDICATES THAT TD 22W HAS MOVED INTO AN AREA OF GREATER
SUBSIDENCE AND LESS FAVORABLE VERTICAL WIND SHEAR. VERTICAL WIND
SHEAR IS ESTIMATED AT 20 KNOTS AND SEA SURFACE TEMPERATURE IS 29
DEGREES. THE 050000Z PGTW GRADIENT LEVEL STREAMLINE ANALYSIS DEPICTS
DRY OFFSHORE FLOW WRAPPING INTO THE SYSTEM. ANIMATED WATER VAPOR
IMAGERY REVEALS DIMINISHED OUTFLOW. A LOW- TO MID-LEVEL STEERING
RIDGE SET UP ALONG THE SOUTHERN CHINESE COAST CONTINUES TO DRIVE TD
22W TO THE WEST-SOUTHWEST. TD 22W WILL CONTINUE TO WEAKEN OVER WATER
DUE TO GREATER SHEAR, EVENTUALLY DISSIPATING OVER LAND WITHIN THE
NEXT 24 HOURS.  MAXIMUM SIGNIFICANT WAVE HEIGHT AT 050600Z IS 12
FEET. NEXT WARNINGS AT 051500Z, 052100Z AND 060300Z.//
NNNN
回復

使用道具 舉報

簽到天數: 195 天

[LV.7]常住居民III

c789654|2011-10-5 21:46 | 顯示全部樓層
Tropical Depression 22W (Nalgae) Warning #34 Final Warning
Issued at 05/1500Z

WTPN33 PGTW 051500
MSGID/GENADMIN/NAVMARFCSTCEN PEARL HARBOR HI/JTWC//
SUBJ/TROPICAL CYCLONE WARNING//
RMKS/
1. TROPICAL DEPRESSION 22W (NALGAE) WARNING NR 034
   01 ACTIVE TROPICAL CYCLONE IN NORTHWESTPAC
   MAX SUSTAINED WINDS BASED ON ONE-MINUTE AVERAGE
   WIND RADII VALID OVER OPEN WATER ONLY
    ---
   WARNING POSITION:
   051200Z --- NEAR 18.1N 107.4E
     MOVEMENT PAST SIX HOURS - 240 DEGREES AT 02 KTS
     POSITION ACCURATE TO WITHIN 060 NM
     POSITION BASED ON CENTER LOCATED BY A COMBINATION OF
     SATELLITE AND SYNOPTIC DATA
   PRESENT WIND DISTRIBUTION:
   MAX SUSTAINED WINDS - 020 KT, GUSTS 030 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE OVER WATER
   REPEAT POSIT: 18.1N 107.4E
    ---
   FORECASTS:
   12 HRS, VALID AT:
   060000Z --- 17.8N 106.9E
   MAX SUSTAINED WINDS - 020 KT, GUSTS 030 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE OVER WATER
   VECTOR TO 24 HR POSIT: 230 DEG/ 02 KTS
    ---
   24 HRS, VALID AT:
   061200Z --- 17.5N 106.5E
   MAX SUSTAINED WINDS - 015 KT, GUSTS 025 KT
   WIND RADII VALID OVER OPEN WATER ONLY
   DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE OVER LAND
    ---
REMARKS:
051500Z POSITION NEAR 18.0N 107.3E. TROPICAL DEPRESSION (TD) 22W
(NALGAE), LOCATED APPROXIMATELY 100 NM NORTH OF HUE, VIETNAM, HAS
TRACKED WEST-SOUTHWESTWARD AT 02 KNOTS OVER THE PAST SIX HOURS. TD
22W HAS WEAKENED SIGNIFICANTLY DURING THE PAST 12 HOURS AND HAS
DISSIPATED AS A SIGNIFICANT TROPICAL CYCLONE. THE TREK ACROSS HAINAN
PROVED TO BE TOO MUCH FOR THE SYSTEM AND IT WAS NEVER ABLE TO REGAIN
STRENGTH AS IT MOVED INTO THE GULF OF TONKIN. CONVECTION HAS
COMPLETELY CEASED AND WINDS HAVE DROPPED TO 20 KNOTS OR BELOW.
ANIMATED INFRARED IMAGERY INDICATES THAT A WEAK LOW LEVEL
CIRCULATION CENTER REMAINS AND IS DRIFTING TOWARDS THE COAST AS IT
FILLS. THIS IS THE FINAL WARNING ON THIS SYSTEM BY THE JOINT TYPHOON
WARNING CENTER (NAVMARFCSTCEN).  THE SYSTEM WILL BE CLOSELY MONI-
TORED FOR SIGNS OF REGENERATION. MAXIMUM SIGNIFICANT WAVE HEIGHT AT
051200Z IS 10 FEET.//
NNNN
回復

使用道具 舉報
